LTE: Transport of NAS messages

·            The purpose of the transport of NAS messages procedure is to carry SMS messages in an encapsulated form between the MME and the UE

·            The procedure may be initiated by the UE or the network and can only be used when the UE is attached for EPS services and IMSI attached for non-EPS services and is in EMM-CONNECTED mode

·            In the UE initiated case, upon request from the SMS entity to send an SMS message, the EMM entity in the UE initiates the procedure by sending an UPLINK NAS TRANSPORT message including the SMS message in the NAS message container IE

·            The network initiates this procedure by sending a DOWNLINK NAS TRANSPORT message which contains the actual SMS message in the NAS message container IE

·            The IE NAS message container is used to encapsulate the SMS messages transferred between the UE and the network. This IE can contain SMS messages such as CP-DATA, CP-ACK, or CP-ERROR

Reference 3GPP TS 24.301

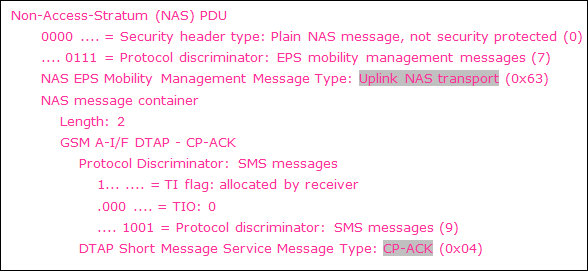

Example1: Uplink NAS Transport – CP-ACK


Example2: Downlink NAS Transport – CP-DATA


Posted by KP
Labels: , ,

18 comments:

  1. KuldeepJuly 15, 2015 at 9:20 PM

    Hi Kumar,
    I have a very basic question regarding Transport of NAS messages. Suppose the UE is in RRC idle state and the network wants to send an SMS over NAS. In this case does the UE need to go to RRC connected state to receive that SMS or UE can receive and decode the SMS in RRC idle state itself. I think it will be considered as a control information received on PDSCH, and the UE can decode it in RRC Idle state.
    I am little confused over this. Please help me in understanding this concept.
    Thank you

    ReplyDelete
    Replies
    1. KPJuly 27, 2015 at 9:25 AM

      The UE has to have RRC Connection and NAS Context established in order to receive SMS.
